down light spot light
DR3047
DR3047

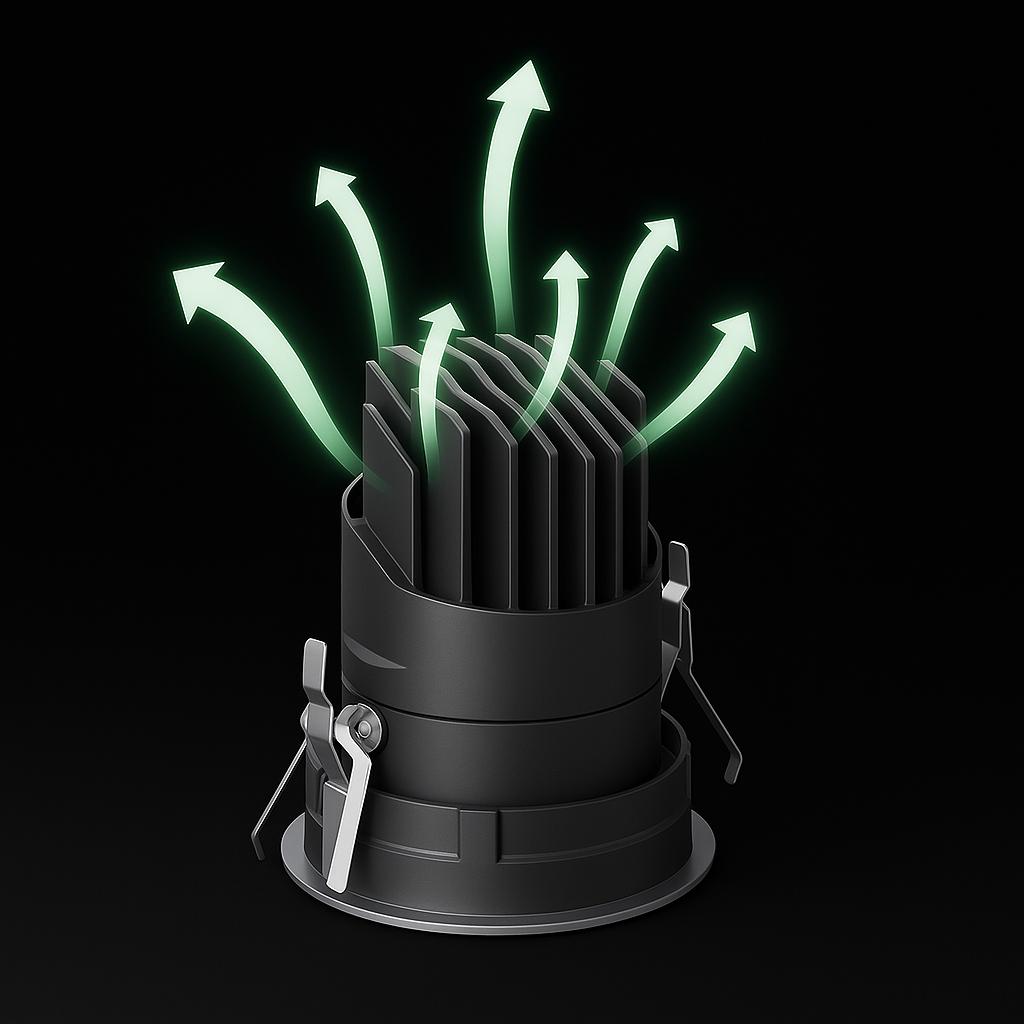

Model: DR3047
Type: 30° Adjustable
LED: COB
Optics: Lens
Watt: 5W|7W|10W|12W|15W|18W|20W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 15°|24°|36°|55
Lumen: 450lm|630lm|900lm|1080lm|1350lm|1620lm|1800lm
Finish: White + Black
Material: Die cast Aluminum
Driver: External
Warranty: 5 years
LED Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli.
Driver Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu...
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable
Type: 30° Adjustable
LED: COB
Optics: Lens
Watt: 5W|7W|10W|12W|15W|18W|20W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 15°|24°|36°|55
Lumen: 450lm|630lm|900lm|1080lm|1350lm|1620lm|1800lm
Finish: White + Black
Material: Die cast Aluminum
Driver: External
Warranty: 5 years
LED Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli.
Driver Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu...
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable
Model |
Watt | Size(mm) | Cutout(mm) |
| DR3047-5W | 5W | φ65*H78 | φ55 |
| DR3047-7W | 7W | φ65*H92 | φ55 |
| DR3047-7W | 7W | φ85*H75 | φ75 |
| DR3047-10W | 10W | φ85*H96 | φ75 |
| DR3047-12W | 12W | φ85*H101 | φ75 |
| DR3047-15W | 15W | φ85*H108 | φ75 |
| DR3047-18W | 18W | φ105*H110 | φ95 |
| DR3047-20W | 20W | φ105*H121 | φ95 |
Features and Benefits
